DW630W-1218 Extra Long Reach Wall Monitor Arm  Over the Bed 63 inch long

For monitors from 12 to 18 lbs. or monitors from 6 - 11 lbs.

The Monitor can face down, towards the headboard, to any side and even totally forward.

Reg. Price: $755.00

* Limited Time Introductory Sale Price: $599.00
+ $65.00 Shipping (Ground contiguous U.S.)

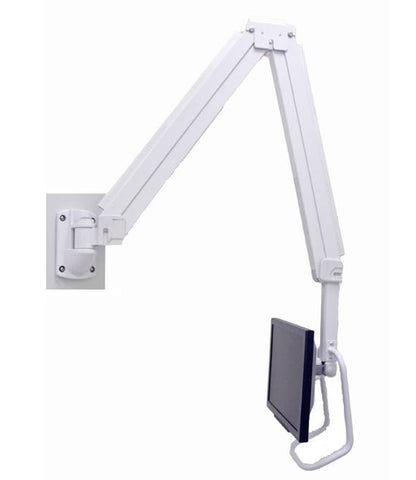

This new extra-long gas-assisted monitor wall arm is normally installed on a wall as an over-the-bed monitor arm, used at hospitals, assisted living facilities, dental practices, and homes. It can also be used in sitting or standing position where a long-reach monitor arm is required (dental practices, healthcare in general).  It can only be attached to a vertical surface (not to ceilings or floors).

It swivels 90 degrees to each side and can be fully extended to 63" long. Can also be retracted all the way back to the wall.  Please scroll down to see 2 videos showing its range of motion and a drawing with the dimensions.

There are 2 versions:

1) DW630-1218: for monitors weighing from 12 - 18 lbs
2) DW630-0611: for lighter monitors, only weighing from 6 - 11 lbs.

When placing an order, be careful to select the version matching the weight range of your monitor using the drop down menu. Please check the weight of your monitor before ordering, since the monitor will not stay in place if you choose the wrong version. Contact us wil any questions.

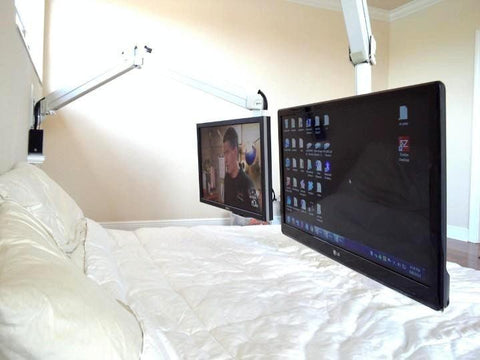

The long wall monitor arm allows to set the monitor or TV in any position or move it out of the way when not in use. It can also can be used as a forward-facing extra long monitor wall arm, asshown below.

 Click on the video below to see its range of motion:

 Scroll all the way down to see another video clip.

With the new gas assisted long reach DW630W wall monitor TV arm you can easily view your monitor in bed or on a medical or dental chair. Position the monitor arm over the bed in your desired position, and it will stay there.

In certain applications where you need even more tilting range, the handle can be removed. In the case of positioning the monitor to face forward instead as the default position (towards the wall where it is attached to), the handle can be re-attached. With the handle removed, the monitor bracket's total swivel capability of 180 degrees side to side and 180 degrees front to back.

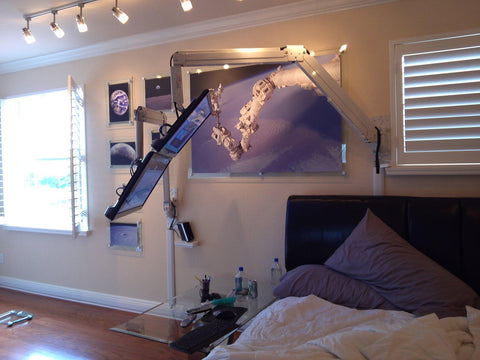

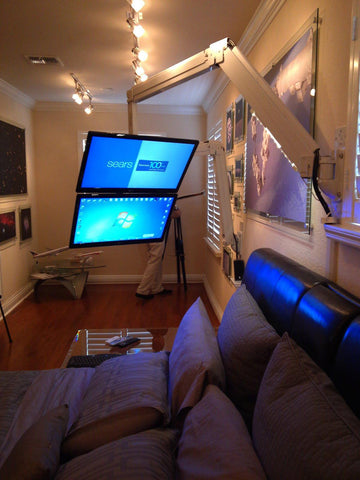

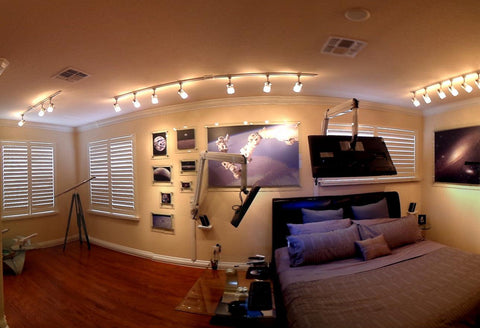

The image below is courtesy of a customer who is bed-ridden and uses 2 monitors simultaneously on 2 of these arms.

Features:

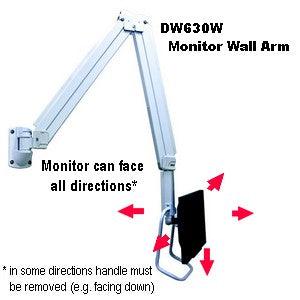

- TV Viewing is totally adjustable:  the VESA Monitor Bracket swivels and tilts so the monitor or TV can even face parallel to the bed, or towards the headboard or any wall and even forward.
- Tilts all the way in the opposite direction, without the handle attached: (180 degrees total; 45 with handle)
- Swivels 180 degrees side to side without the handle and 60 with the handle.
- Rotates 360 degrees

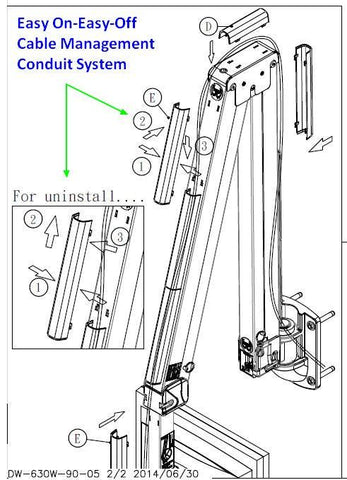

- Cables run hidden along arm sections, covered by an easily removable cable conduit (see Page 2; Step 5 of Instruction Sheet link below).
- Cable conduit internal dimensions: 23 H x 26 W mm; 0.9 H x 1.02 W  inches

Click here for the Instruction Sheet

What fits:
a) DW630-1218 Fits monitors weighing from 12 to 18 lbs.
b) DW630-0618 Fits monitors weighing from 6 to 11 lbs.

Note: Please be sure to check the weight of your monitor before ordering.The weight of your monitor is generally specified under your monitor's "Specifications" easily found online. Contact us if you are not sure.

b) VESA Mounting hole pattern: standard 75 x 75 and 100 x 100 bracket hole-mount pattern. Optional bracket adapter is available for 200 x 100 TVs (DAD200100 see below).  Check that your monitor has mounting holes on the back or if an adapter is available if it doesn't.

Options:
a) D-AD200100  VESA 200x100 Adapter

b)  D-REF Installation Reinforcement Plate: to ensure a sturdier installation, especially on hollow walls or non-concrete walls, we recommend the D-REF Installation Reinforcement Plate (see PDF). This increases the footprint of the arm's base and, most importantly, adds 15 extra holes so you can "catch" the stud in the middle of the stud and the base. It also adds more fastening points on the sides to reinforce installation.  Click here to buy.

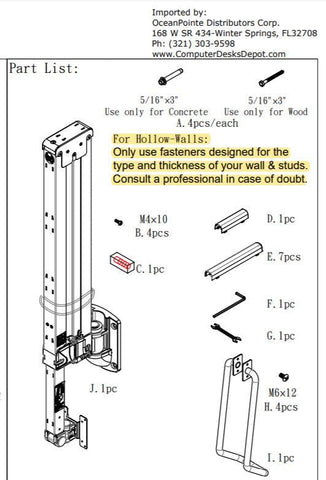

Note for Hollow-Wall installation:
Fasteners are included for most common walls (concrete, wood, hollow). Nevertheless, you must check the characteristics of your particular wall and use the appropriate fasteners. In the case of hollow walls, take into account the material and thickness of your particular hollow-wall. We recommend metal anchors for at least 50 lbs. each, to compensate for the down-force (torque) applied on the base of the arm when it is fully extended, horizontal to the floor. Consult a professional installer in case of doubt. The above D-REF plate aids in securing installation. An example of hollow-wall anchors can be seen here but the anchor used will depend on your type of hollow wall. Always tray to catch the stud with at least 2 bolts or reinforce the wall because the anchor will surely not break, the wall might.

Versatile:

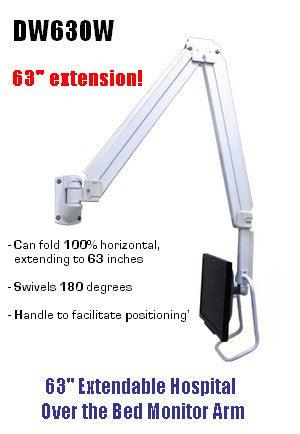

Try multiple viewing angles, with positioning possibilities greatly facilitated by the double-spring articulated LCD monitor wall arm, which extends all the way to a straight 63" (horizontal to the floor). Then, when not in use, fully push it back against the wall.

The torque of the movements can be adjusted, to suit individual applications.

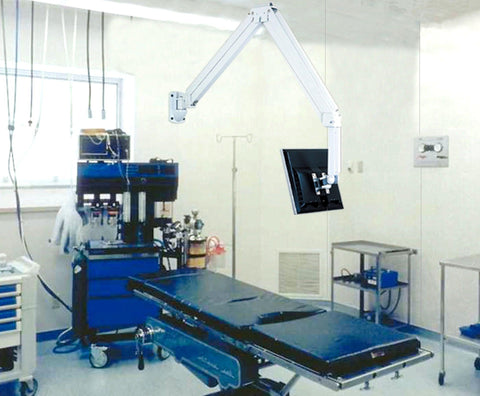

This hospital LCD wall arm has a great range of motion.

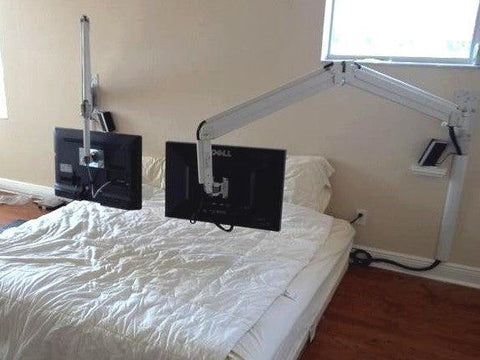

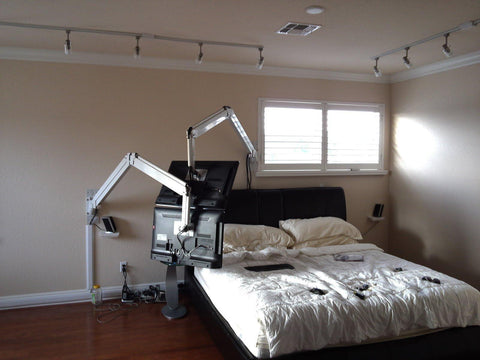

Below is a short video clip courtesy of one of our business customers showing two DW630-1218 arms, one on each side of the bed, installed for a bedridden individual.
